DFB Gypsum Board consists of a non-combustible core, gypsum in particular and extra tough paper on both sides of boards. This special extra tough paper makes gypsum board strong and long lasting. DFB Gypsum Board comes in comprehensive range of high quality board, utilizing the best materials coupled with precision engineering to match specific customer requirements that comply with ASTM standards which are tested on ASTM C472, C473, C474 D3763 Semi-Dynamic Method. (See Test Report)
DFB Standard Gypsum Board is an ideal choice for interior walls, partitions and ceilings, which require no special protection from fire or moisture.
DFB Moisture Resistance Gypsum Board is an excellent choice for walls, partition and ceilings, which requires extra protection from moisture. By mixing wax and compound of silicone to the gypsum encased with green facing paper encased to withstand the effect of moisture and high humidity
DFB Fire Resistance Gypsum Board is superb for walls, partitions and ceilings in the areas, which require special protection from fire. It has been specially developed and tested to meet various fire rated requirements. By adding noncombustible fiber to the gypsum and encased with pink glutinous compressed paper to enhance its strength. Fire Shield gypsum board is highly recommended for areas which requires special protection from fire such as: fire escape stair, computer rooms, elevators, and interior walls in the building.
DFB Foil Backed Gypsum Board is bonded with the special aluminum foil sheet at the back liner of the board to provide 95% reflection of thermal radiation, allowing comfort temperature level in the area. In Cold climates, this panel forms an effective vapor retarder for walls and ceiling when applied with foil surface next to framing on interior of the exterior wall. Foil backed Gypsum panels provide a water-vapor retarder to help prevent interior moisture from entering wall and ceiling spaces.
| Thickness | Metric Size(mm) | Imperial Size(mm) | Weight (approx.) kg./sheet | 20ft Container Loading |
|---|---|---|---|---|
| 9mm | 1200 x 1800 | 1220 x 1830 | 15 | 1400 Sheets |
| 12mm | 1200 x 1800 | 1220 x 1830 | 19 | 1050 Sheets |
| 9mm | 1200 x 2400 | 1220 x 2440 | 20 | 900 Sheets |
| 12mm | 1200 x 2400 | 1220 x 2440 | 25 | 690 Sheets |
*15mm |
1200 x 2400 | 1220 x 2440 | 32 | 580 Sheets |
Remarks: * sizes will be available on special orders and should be ordered in advance.
DFB Gypsum Board comes in two different types of edges, which are designed for particular type of work. Using the suitable type of edge provides better appearance and looks.
Suitable for Ceilings and interior Walls, requires no jointing.
Suitable for Ceilings that need smooth level finish and for interior walls, requires jointing. Tapered edges give more space for bedding the joint filler and tape. As a result a seamless fine finish is achieved at joints.
Gypsum board is not recommended for use in areas exposed to extreme or continuous moisture such as saunas, steam rooms, and swimming pool

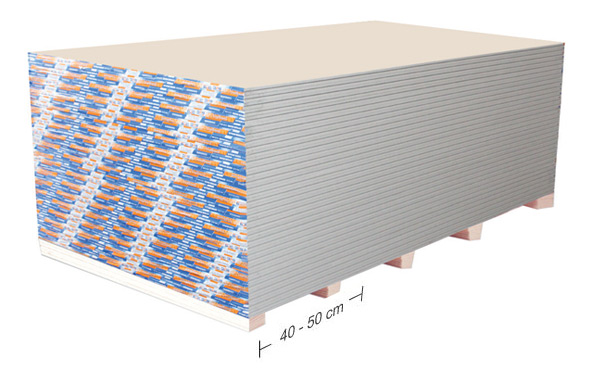

Gypsum Board should be kept in a cool and dry area. Put support at every 50cm to prevent the board from touching the floor directly. The storeroom should allow ventilation.
